Biomass Wood Pellet Mill Wood Pellet Machine

Biomass Wood Pellet Mill Wood Pellet Machine

Short Description:

Wood pellet machinery is a machine that is used to press sawdust and other crushed biomass material powder into biomass wood pellets.

Our wood pellet machinery applies for various biomass materials, such as wood, sawdust, wood chips, straw, rice husk, peanut shells,bamboo,grass, sugarcane etc.

The finished pellets is biomass energy as bio-fuel, which can replace coal, oil, gas, etc., widely used in power plant, boiler, and heating system.


Product Detail

Product Tags

banner

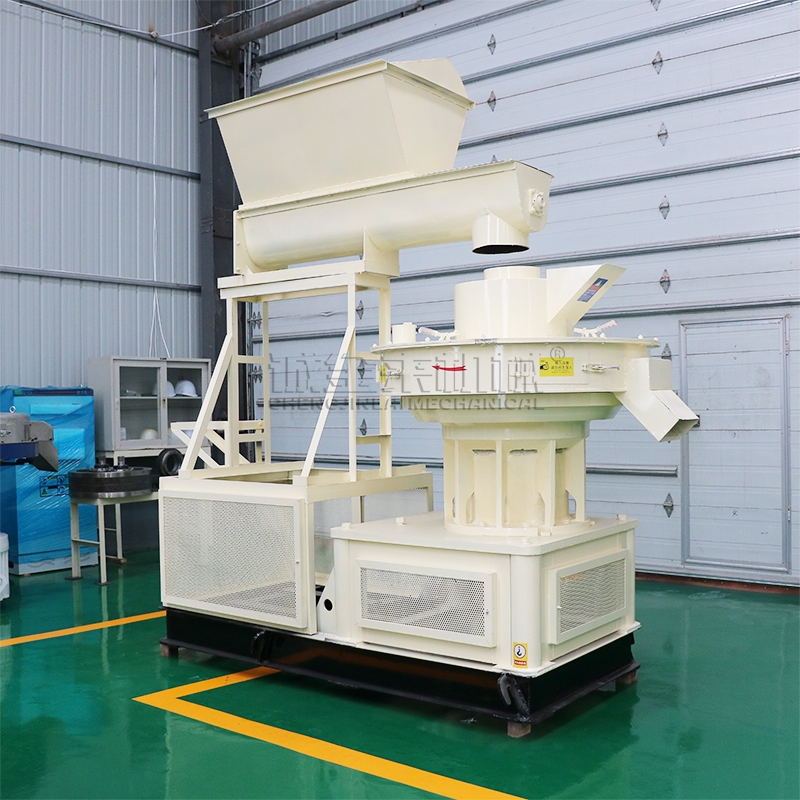

    Brief Introduction

Biomass wood pellet machine is the new design wood pellet maker to make biomass fuel pellets. It is mainly suitable for coarse fiber granulation, such as: wood chips, rice husks, cotton stalks, cottonseed husks, weeds and other crop stalks, household garbage, waste plastics and waste from factories. It is also suitable for granulation of materials with low adhesion rate and difficult to be formed, such as granulation, press block and granulation bar, and can also be used for low temperature granulation of biological bacterial fertilizer, organic fertilizer and compound fertilizer.



real1

Working principle

The working principle of biomass pellet machine is mainly to convert biomass raw materials into granular solid fuel through mechanical energy. ‌ It is mainly composed of two parts: the upper body and the lower body. When working, the motor drives the upper body to do high-speed rotating movement, and the body is driven by the pulley to do relatively low-speed rotating movement. The material is fed into the annular tank and is hot extruded to form a rod or cylinder solid fuel.
real2

Product Details

细节

Stainless Steel Mould

Stainless steel whole carburizing die,high wear resistance, good stability,discharge area increase,enhance capacity and reduce cost.Double layer,both side can be used, reduce cost.

Roller

The roller adopts wear-resistant alloy welding process, without lock nut structure design, less grease consumption, which greatly extends the bearing life, then reducing cost.

Siemens Motor

The motor of wood pellet machine is frequency, with thick copper coil, It won’t be burned due to instantaneous current.

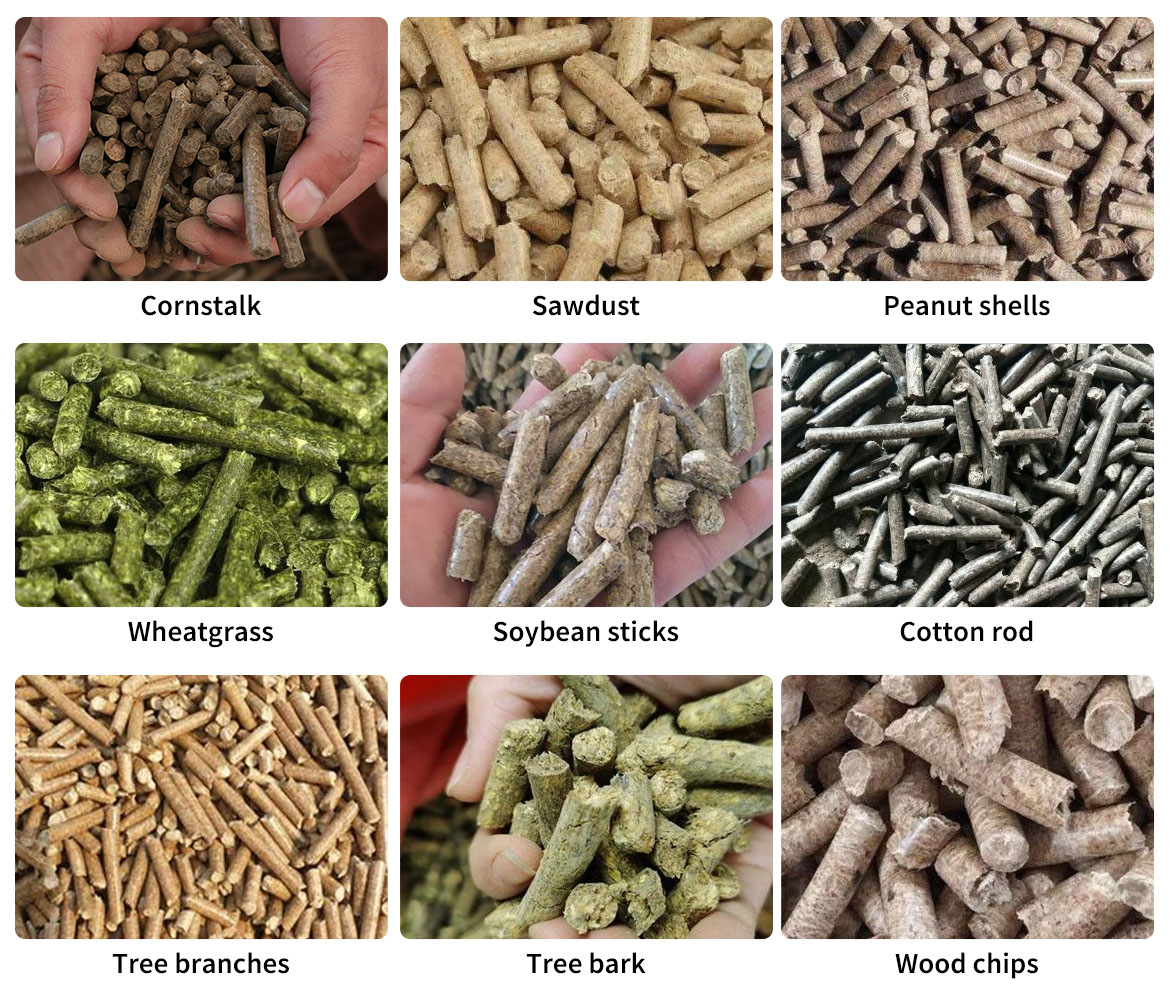

What kind of raw material can be used to press pellets?

原料

wood pellet machinery can press various hard and soft raw materials, such as wood, sawdust, olive, pine, agricultural straw, rice husk, peanut shell, corn stalk, bamboo, grass, efb, etc. If the size of your raw material is too large, you will need a wood crusher to make it into the appropriate size

成品

How to press wood pellets?

流程

The main process to make wood pellets as below:

If your raw material is wood log, the process can be as below: wood chipper(crushing wood log into wood chips)---Hammer Mill(crush wood chips into smaller powder)---rotary dryer(dry the raw material into suitable moisture)---wood pellet machine(press sawdust into wood pellets, the pellet size can be 6mm to 12mm)---cooling machine---packing machine
line1



If you call or email us now to tell us your specific needs, we will develop solutions for you in a timely manner.
