Coconut shell charcoal making machine
Coconut shell charcoal making machine
Coconut Charcoal Making Machine
The coconut carbonization stove is an efficient stove can change wood log, wood briquette, coconut shell and bamboo Palm shells etc directly into final charcoal,can working without electricity.
This type of stove adopts the structure of unique air storage chamber to fully reuse the smoke produced during the process of carbonization. And 60% of the redundant smoke can be used in drying and carbonizing, saving much fuel during the whole process, and increasing the enterprise revenue.
Advantages of wood charcoal carbonization furnace
1. Easy operate and maintain.
2. High carbonization rate, With smoke removal equipment. It is environmental friendly.
3. 8 hours per stove and work continuously.
4. The combustible gas generated during carbonization process will come down along the pipes to the lighting hole to become fuel to heat the stove.
5. With hoisting tools, which can hang the inside stove very easily.
Usage
1.Inner stove:

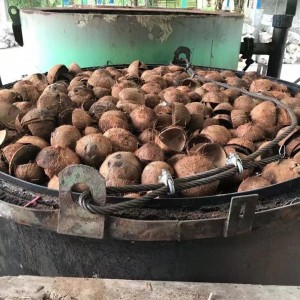

Consist of the stove tank body and the sealed top cap. Both of them are made of the heat resistance thermal steel, and the three carbonization basket can be stack together, easy for loading and transporting ,and it will save a lot of space and transport charge.
2. Hoisting equipment:
It include the steel hoisting frame and the E-hoist .And it is easy for loading and unloading the stove, and can reduce labor intensity, and it can be avoid the high-temperature burn when lift the carbonization basket.
3. Purification tank:
This system is consisting of purification tank and the exhaust-heated cycle pipe. And Smoking purification tank are used for purify the smoking(can not Burning) and filter the wood tar.
The smoking through the purification tank will Become water vapor, and it will not pollute the air.
1) Arrange wood briquettes in furnace, leave 25 cm distance from the briquette to the roof of furnace
2) Close the door of furnace
3) Burn 10 kg wood briquettes, and put into furnace from the top holes.
4) Turn on the air fan
5) Leave a small gap at the top hole to supply a little air, this procedure lasts 6 hours, and during this 6 hours, make the gap smaller and smaller.
6) After 6 hours, watch the smoke from the chimney, compare the color of smoke, if the smoke become transparent, close the gap completely.
7) Turn off the air fan
8) Wait the stove become cool, this procedure lasts 6 to 8 hours .
9) Open the door, and leave the stove, make sure the gas come out and then check if the carbonizing is finished
10) If after 6 hours, the smoke is still strong, keep the air fan working, and leave the gap until the smoke become transparent. Sometimes, this procedure last 8-10 hours.
11) At the end, if the carbonization is not complete, the wood briquettes don’t become charcoal totally, ignite again, and do as the above procedure
12) The better quality of charcoal needs
Raw Materials & Finished Products
Machine Parameters
|
Model
|
Capacity
|
Weight
|
Oversize
|
Suitable material
|
|
|
CJL-1000
|
1-1.5T
|
3600kg
|
2.1*2.1*2.4m
|
Wood log,coconut shell,bamboo
|
|
We are a professional manufacturer of charcoal machine equipment. We provide customers with production lines and various accessories. Such as trolley, induced draft fan, burner, high-voltage electrostatic system, etc. Therefore, we can customize different sizes of equipment.
If you call or email us now to tell us your specific needs, we will develop solutions for you in a timely manner.
