Continuous Carbonization Furnace Machine Charcoal Making Machine

Continuous Carbonization Furnace Machine Charcoal Making Machine

Short Description:

Continuous Rotary Charcoal Furnace used to transfer material into charcoal. Allow the material to undergo high-temperature pyrolysis under low oxygen conditions, remove impurities, and obtain the final carbon portion. And this type suitable for small size material less than 20 mm.



Biomass materials: rice husks, straws, coconut shells, palm shells, bamboos, wood chips, bagasse, distillers’ grains, olive shells, coffee shells, fruit shells, hazelnut shells, sawdust, oak wood, jute stalks, peanut shells, sunflower stalks, peach pit sand so on.



Sludge: municipal sludge, river sludge, industrial sludge,Waste, municipal solid waste.


  • :
  • Product Detail

    Product Tags

    banner

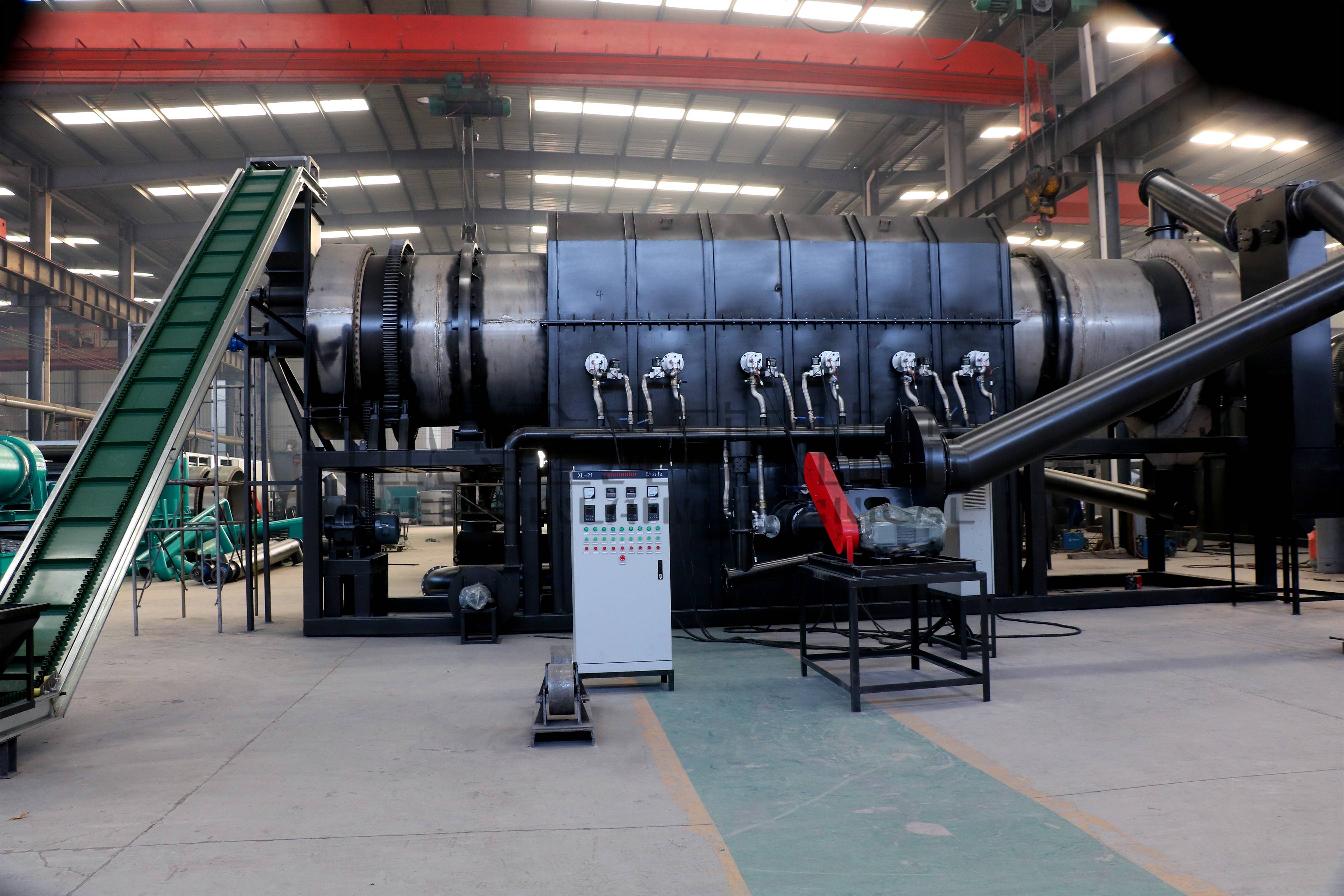

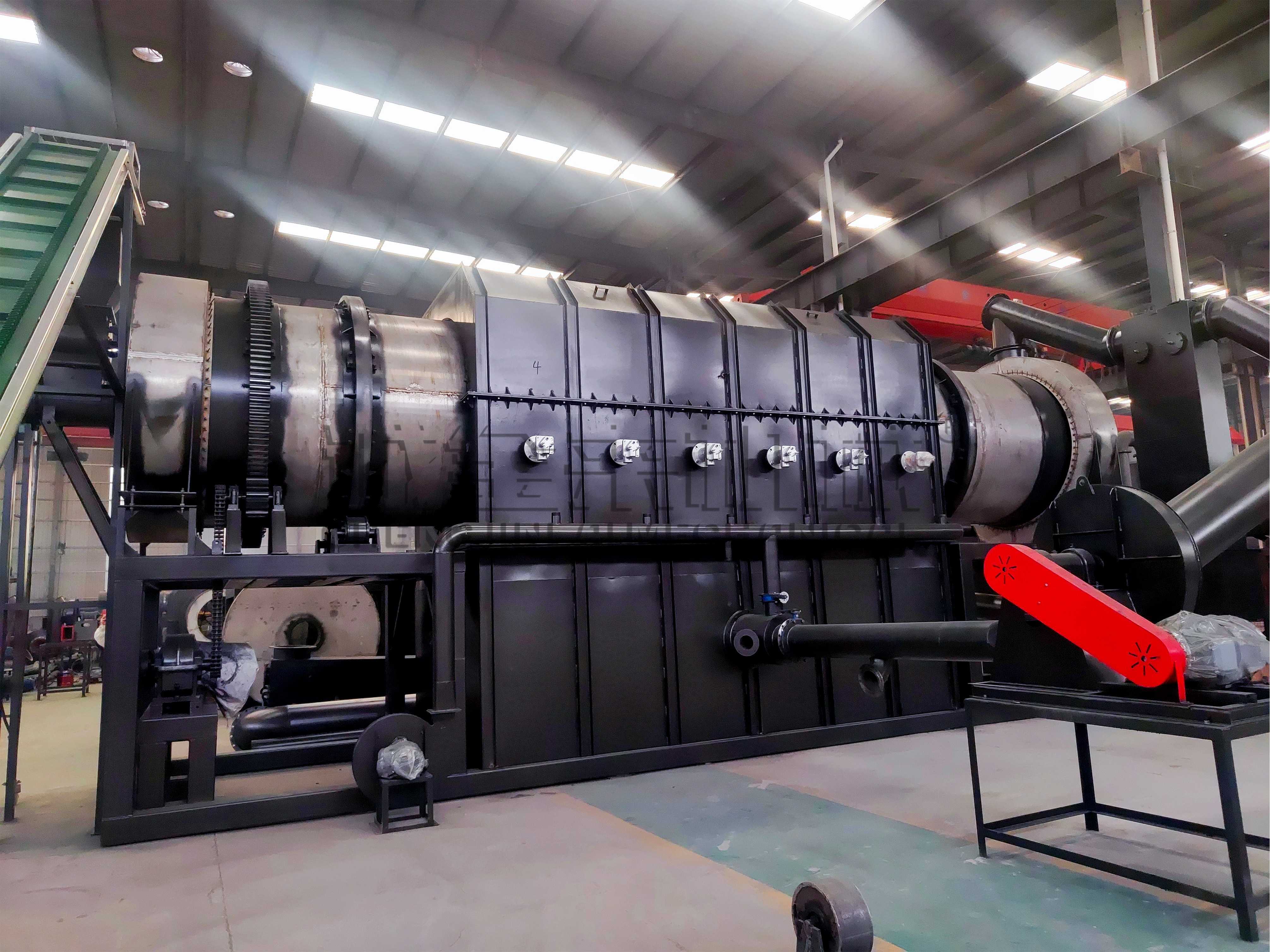

    Continuous Rotary Charcoal Furnace used to transfer material into charcoal. Allow the material to undergo high-temperature pyrolysis under low oxygen conditions, remove impurities, and obtain the final carbon portion. And this type suitable for small size material less than 20 mm.

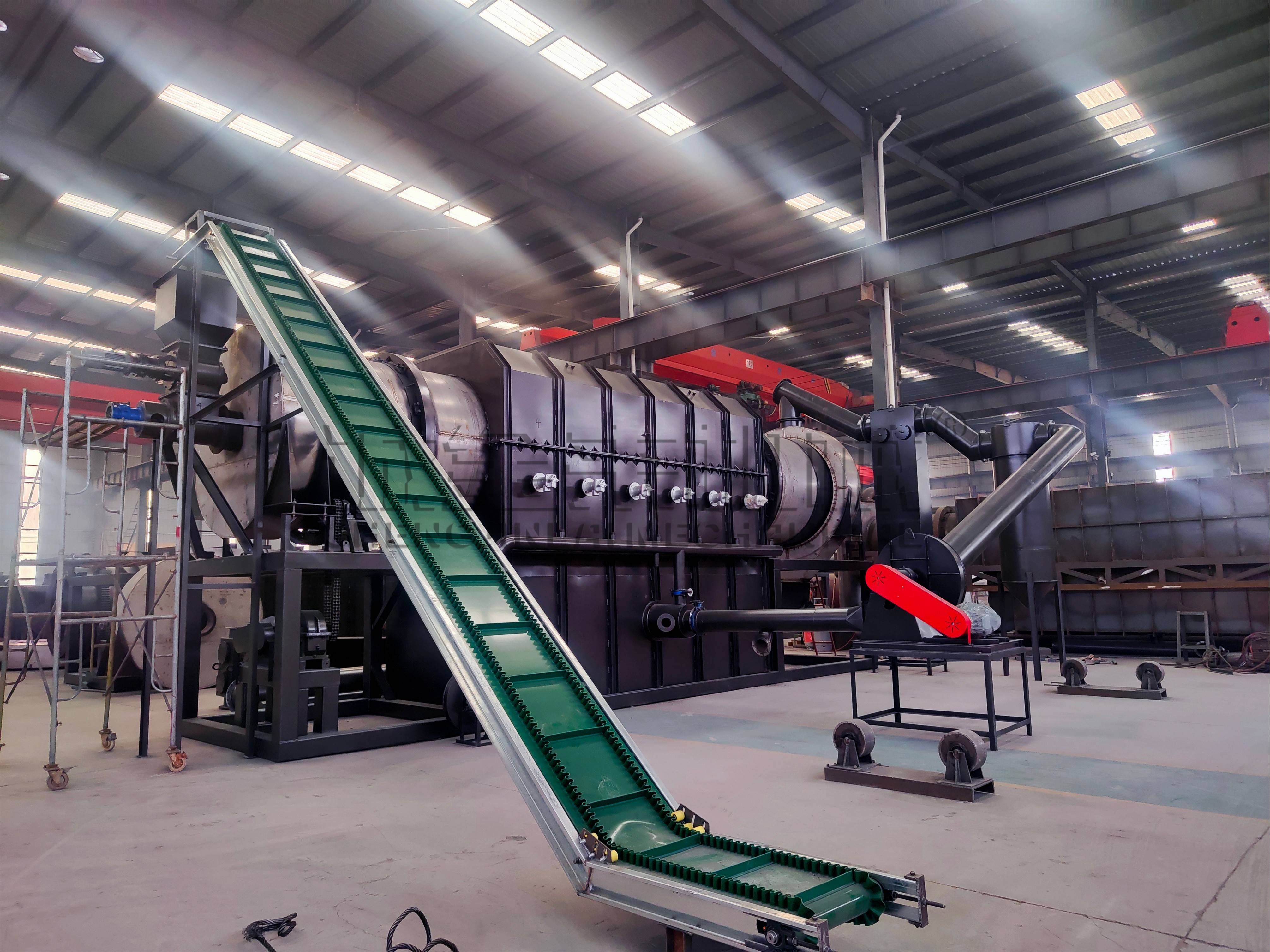

    Suitable for various materials: Like sawdust, palm shell, rice husk, peanut shell, biomass, bamboo powder etc.Materials go into the carbonizing drum by a screw conveyor, and move to the other side with hot temperature, and become carbonized, then get out of the furnace by a cooling conveyor with water circulation system.

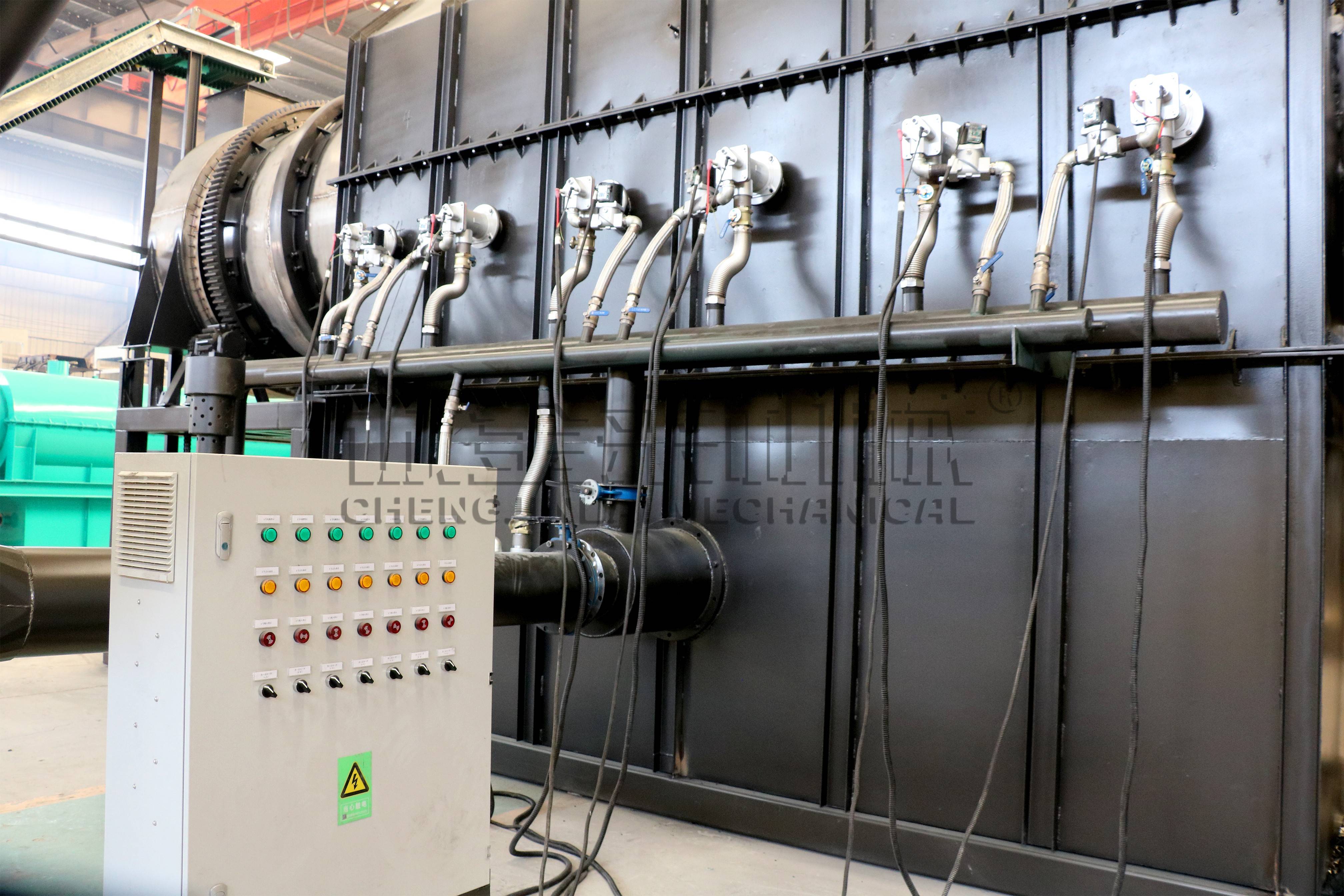

    Environmentally friendly and safe: Equipment also match purification system, during carbonizing , generate combustible gas will be cleaned up and return furnace to heat itself. This machine is fully automatic, it has a PLC control cabinet, no need worker when its working.

    细节
    对比(1)

    All kinds of biomass material for charcoal making equipment : Fruit Husk,Wood Scraps, Sugarcane Bagasse, and Crop Stalks, Fruit Husk---Rice husk, Coconut shell, Peanut shell/ Groundnut shell, Sunflower seed husk/shell, Palm kernel shell, Walnut shell, Almond shell, Pistachio shell etc.

    Wood Scraps:Wood sawdust,Forest farm & furniture factory scraps, Wood shavings, Wood chips, Tree branch, Bamboo scraps, Sugarcane bagasse, Distillers grains, Coffee grounds, coco husk chips, Waste from beer breweries, Empty Fruit Bunch etc.

    Crop Stalks:Plants straw, Crop residues, Soybean straw, Wheat straw, Cotton straw, Corn stalks, Sorghum stalk, Maize Cob/ Corncob, Sorghum husk/ shell/hull, Potato grass, Dead leaves etc.

    Biomass particles no more than 50mm and moisture content less than 20% can be directly carbonized into this carboning kiln.

    Raw materials with large size (above 50mm): such as branches, bark, coconut shell, straw, hemp stalk and tobacco stalk,need to be crushed firstly.If the moisture content is more than 20%, we need to choose a dryer to cooperate with the production process.
    流程图

    Canonization furnace charcoal making equipment production line processing:

    1.Crush the raw material into small pieces(Crusher)

    2.Carbonize the small biomass materials

    3.Mix the charcoal powder(Wheel mixer)

    4.Extrude the charcoal powder into shape you need(Coal charcoal extrude machine)

    5. Heat pump dryer to dry the formed finished product (as the moisture content of the finished product during this production process will be high, the finished product needs to be dried again)

    6.Packing finished product (Choose the right packing machine according to the finished product shape)

    3d
    发货(1)
    客户现场

    Please tell us your specific raw materials and requirements, and we can configure the production line according to your requirements!
