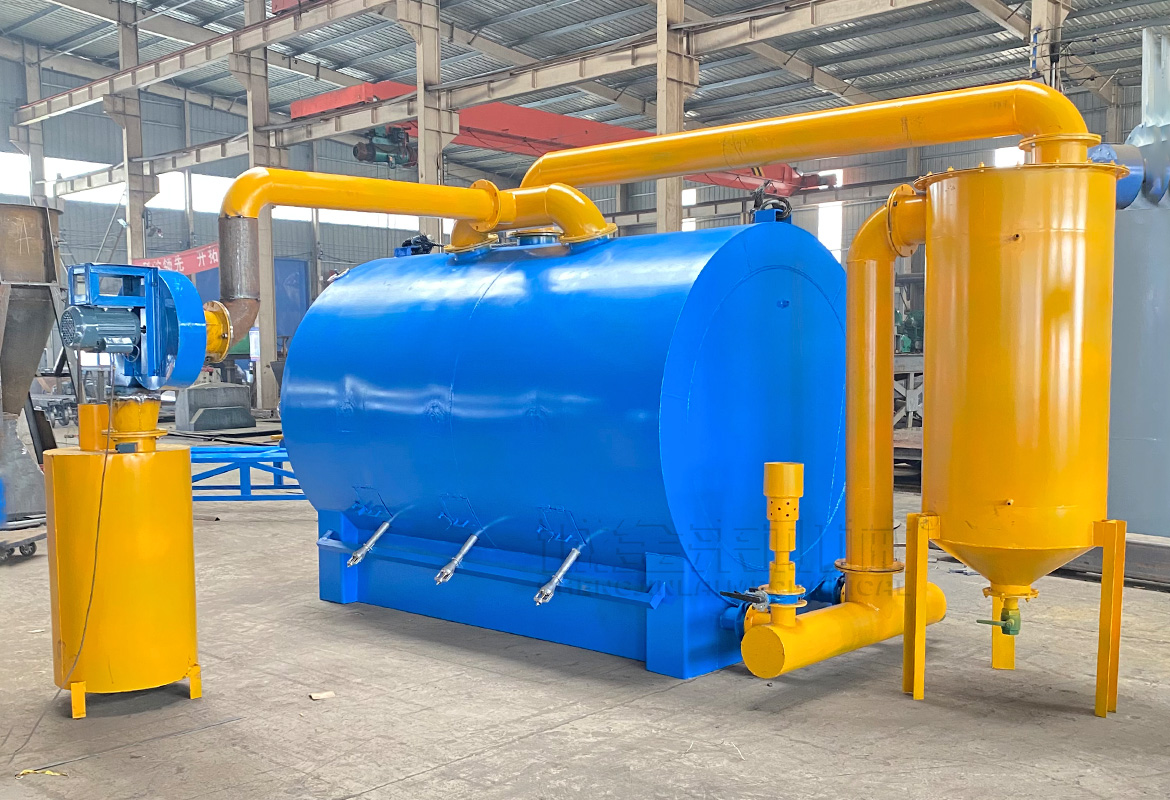

Horizontal Carbonizaton Furnace For Wood Charcoal

Horizontal Carbonizaton Furnace For Wood Charcoal

Short Description:

Horizontal Hardwood Charcoal Carbonizaton Furnace apply for many kinds of biomass raw materials, such as wood, wood log, tree branch, wood stick, wood waste, wood briquette, coconut shell, bamboo, olive husk, palm kernel shell, cashew nut shell, etc.

Carbonization Process: Feeding raw material and sealing the furnace→Preheating and drying the raw material → Anaerobic carbonization →cooling and taking out charcoal.




Product Detail

Product Tags

卧式炭化炉详情

Carbonization furnace are special used cart entry and exit raw material and the advanced hot gas dry carbonization process technology, using a unique carbonization flue gas. Back Burning Technology, make full use of the flue gas produced by carbonization process, meet the thermal needs of carbonization furnace itself, greatly increase the carbonization rate, the carbonization rate increased from 80% to more than 95%, and easy to operate, safety and environmental protection, high production efficiency, can save a lot of energy, is the ideal equipment for carbonizing the long rod type biomass material.

Working Principle of Horizontal Carbonization Furnace

Carbonization furnace use dry distillation carbonization and airflow carbonization methods. By then heating and decomposing the wood under oxygen-free or low-oxygen conditions, the wood produces wood vinegar, wood tar, and other ingredients. Moreover, the exhaust pipe of the horizontal airflow carbonization furnace can collect the flue gas in time and deposit harmful substances.

卧式炭化炉详情1

Raw Materials & Finished Products

卧式炭化炉详情2

Almost all the biomass can be made into charcoal, such as peanut shell, coconut shell, wood, biomass, some crops, bamboo, waste wood, branches, trunks, logs, bark, stumps, roots, wooden pallet, sawdust, shavings, wood chips, fruit wood, rice husk, corncob, peanut shell, furfural residue, palm shell, semi-coke and etc.

Hot To Use?

3
1

1. Check whether the raw materials meet the standard. The water content is less than 20%, and the size is about 50mm. Otherwise, we can provide you with crushers and dryers.

2. Open the furnace door, and put the mateiral inside directly; or you can put the mateiral on the rail car to send the material into the inner pot.

3. Seal the furnace, and check the valves and other things.

4. Fire the furnace and to make the charcoal. This step, there is the combustible gas to produce and this gas can be sent to the bottom of the fire mouth to let the machine heat.

5. After the charcoal finished and cooled, then use the rail car to delivery the charcoal out.



7

Carbonization furnace combustion chamber

6

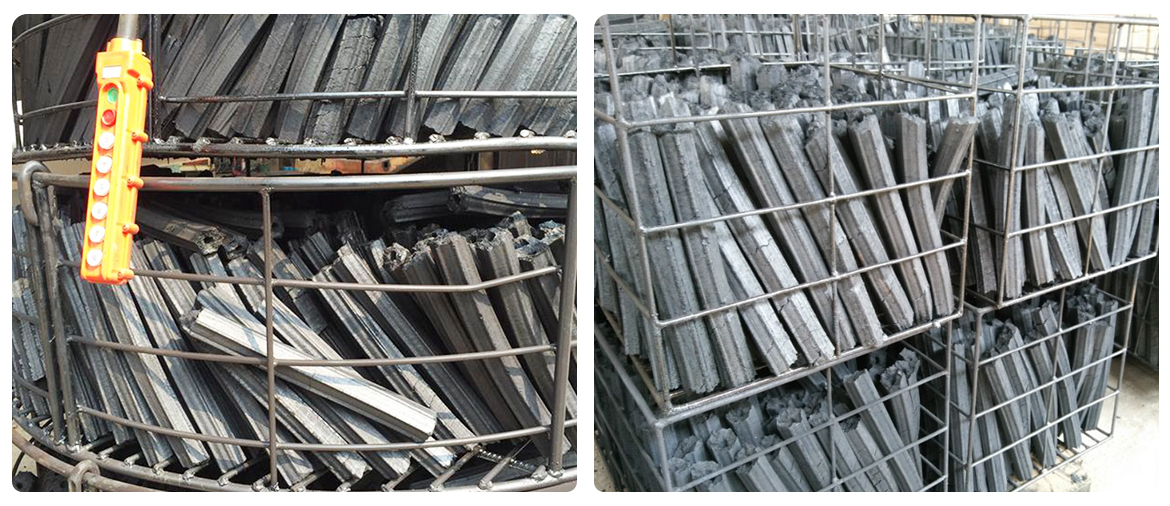

After charcoal carbonization

Machine Parameters

卧式炭化炉实拍1
 Model
   Inner cylinder size

   (Diam x Length)
       Dimension(length*width*height)
 Weight
Output
CJL-50
0.5*0.75m
1.1*0.7*1m
 130kg
 50-100kg
CJL-250
1*1.5m
1.8*1.2*1.6m
 450kg
 200-300kg
CJL-500
1.5*1.5m
1.8*1.7*2.2m
1000kg
 500-600kg
CJL-1000
1.5*3m
3.8*1.8*2.4m
2800kg
  1500kg
              Machine size can be customized according to the your required output.

Production Line

It can be used in a charcoal production line or used alone

未标题-2

 Production Line Ⅰ : Crushing --- Drying  ---  Press briquette  ---  Carbonizing briquette to charcoal

炭化后2
炭化后

Or, you can carbonize the raw materials first

生产流程

Production Line Ⅱ:

1.Coconut shell, wood, bamboo and other biomass are carbonized into charcoal by carbonization furnace and enter hoister and storage tank. According to customer's raw material, you can choose continuous carbonization furnace, horizontal charcoal making stove and hoisting carbonization furnace.
2.charcoal can be crushed into charcoal powder by dust-free grinder.
3.Stir the charcoal powder and adhesive with a mixer.
4.Charcoal powder can be formed into ball, cylinder, tables and cubic by briquette machine
5.Enter the dryer by drying.

椰子壳(1)
2

Factory delivery display

卧式炭化炉详情3

We are a professional manufacturer of charcoal machine equipment. We provide customers with production lines and various accessories. Such as trolley, induced draft fan, burner, high-voltage electrostatic system, etc. Therefore, we can customize different sizes of equipment.

If you call or email us now to tell us your specific needs, we will develop solutions for you in a timely manner.

卧式炭化炉详情4
