Peanut shell charcoal machine

Peanut shell charcoal machine

Short Description:

Charcoal extrude machine, which using the principle of screw extrusion to compress the coal powder into a predetermined shape with a certain intensity. After the coal powder poured into machine chamber, it bears tremendous pressure. With the help of all kinds of shaped molds, it will be shaped into different powder materials into briquettes, for example charcoal powder, coal powder, etc.


Product Detail

Product Tags

未标题-2(1)



SAWDUST BRIQUETTE MACHINE

 The machine can produce hollow hexagonal or quadrangular cylinder briquettes with different diameters from agro-forestry wastes, such as sawdust, wood chips, branches, crop stalks, sugarcane residue, coffee husk, paddy straw, sunflower stalk, cotton stalks, bamboo dust, palm husk, soybeans husk, tea waste, etc.

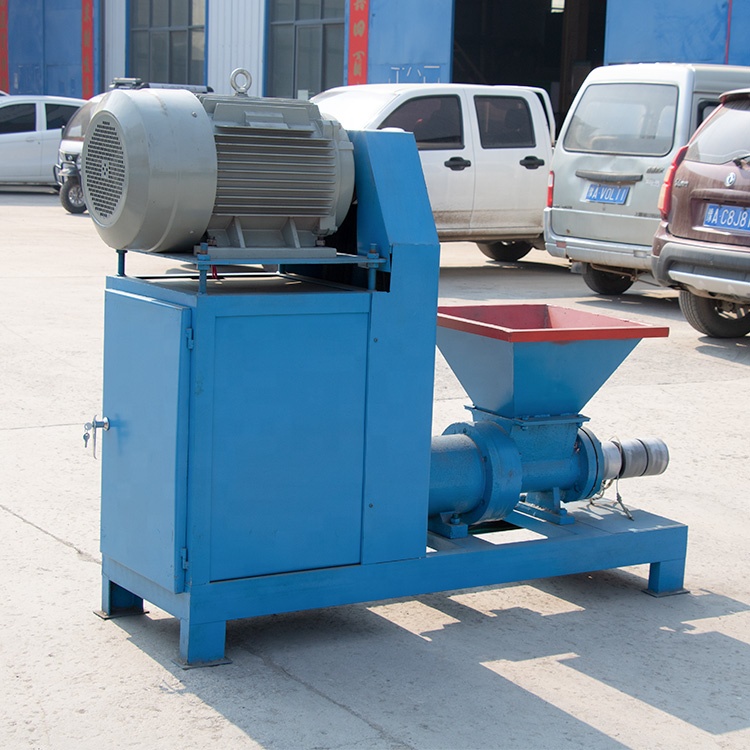

Working Principle of Sawdust Briquette Machine

 The Machine is the primary equipment for charcoal product molding machine, it could making bamboo, straw, wood, nut shell and other raw material, the final product is briquettes with central hole, by the high temperature, and high pressure.

木炭机3
32222

The motor uses a high-quality motor with a full copper core, and the mold is made of chromium-manganese alloy, which has good high-temperature resistance and oxidation resistance.

The hopper adopts a large opening design, which is convenient for feeding and can also make the feeding more uniform. There are a variety of models of molds from the discharge port, and they can also be customized according to customer needs.
The discharge port is equipped with a broken rod rack, which can control the length of the formed biomass charcoal between 10-15cm.



木炭机详情2_03
木炭机详情2_04
木炭机详情2_01
木炭机详情2_02

Raw Materials & Finished Products

木炭机详情3

Almost all the biomass are suitable for charcoal machine, such as peanut shell, coconut shell, wood, biomass, some crops, bamboo, waste wood, branches, trunks, logs, bark, stumps, roots, wooden pallet, sawdust, shavings, wood chips, fruit wood, rice husk, corncob, peanut shell, furfural residue, palm shell, semi-coke and etc.

木炭机详情4

Machine Parameters

2
Model
Productivity
(kg/h)
Motor power
(KW)
Weight
 (kg)
Out size
(mm)
50
400-500
18.5
800
1800*500*1700
80
500-600
22
900
1800*500*1700

Production Line

未标题-2

 Production Line Ⅰ : Crushing --- Drying  ---  Press briquette  ---  Carbonizing briquette to charcoal

炭化后

Factory delivery site

木炭机详情6

Customer site

木炭机详情5

We are a professional manufacturer of charcoal machine equipment. We provide customers with production lines and various accessories. Such as trolley, induced draft fan, burner, high-voltage electrostatic system, etc. Therefore, we can customize different sizes of equipment.

If you call or email us now to tell us your specific needs, we will develop solutions for you in a timely manner.
